# Our Product

12 Paddle Wheel Long Arm Aerator

Watch Video

Elizar Aquaculture

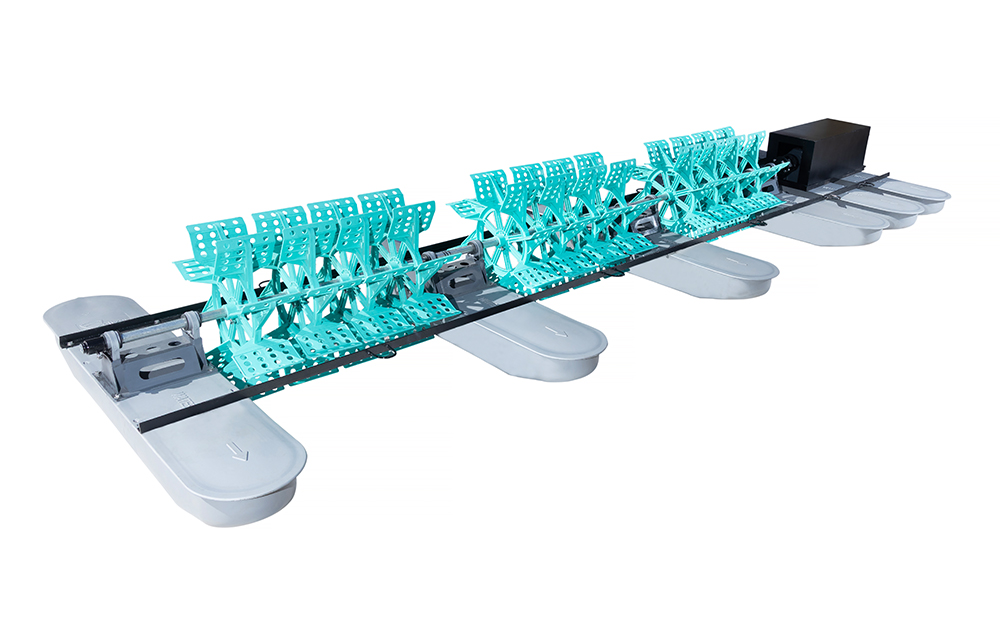

12 Paddle Wheel Long Arm Aerator

We have developed 12 paddle wheel long arm aerator specifically designed for larger ponds more than 1 hectare. Traditional long arm aerators are often “FIXED” to the pond dyke at one end, while our model can place anywhere within the pond. Farmers often face challenges in spare parts such as shaft, impeller, and gimbal joint breakage, gearbox maintenance concerns, insufficient oxygen levels, and inadequate water current. Our model effectively addresses these challenges such as Single Mould Impeller, HDPE Floater, S.S. 304 Shaft and Frame, Strong foundation for Gearbox and Motor, Bigger Gimbal joint and Helical Gearbox. As a result as lower maintenance, increased durability, improved oxygenation as well as water current and reduced power loss compared to the existing traditional long arm aerators.
KW HP Voltage Hz Efficiency DO AMP
2.24 KW 3 415 50 84.35% 3.8 - 4.3 3.8
We’re Here to Help

Have questions or need guidance? Our experts are here to help with personalized solutions. Let's Talk!

Elizar Aquaculture

Spare Parts

HDPE Float

Virgin HDPE with UV ( 6 Unit )

Impeller

S.S. Bushing Virgin Plastic with UV ( 12 Unit )

3HP Motor

with CED Coating ( 1 Unit )

Helical Gearbox

Cast Iron with CED Coating ( 1 Unit )

Gearbox & Motor Frame

Heavy L Channel Frame with Powder Coating ( 1 Unit )

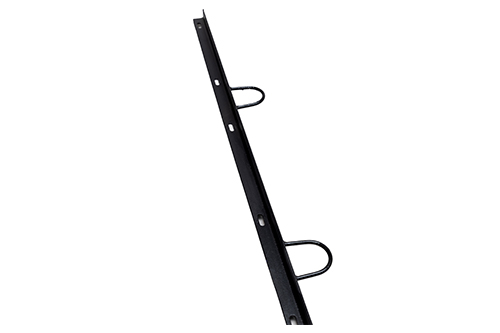

Frame

L Angle S.S.304 with Powder Coating ( 1 Unit )

Tripod with Stand

Virgin Plastic with UV ( 4 Unit )

Gimbal Joint

iron ( 2 Unit )

Shafting- SS 304

Round Pipe OD-33.5mm ( 1 Unit )

S.S. Bolt Kit

SS 304 ( 1 Unit )
